Hand Operated Tensile Testing System, the two column frame with a hand wheel operated lead screw is a perfect tool for tension, compression and flexural testing of springs, rubber, paper, film etc., with apt attachments. These are appreciated for their durability, accuracy of results and high tensile strength. It is a better Tensile Tester Machine having variety of applications.
- 022 - 25893581
- Established In
- 1978
- Great Manufacturing
- Lab.Testing Equipment for Plastic, Rubber and Cable

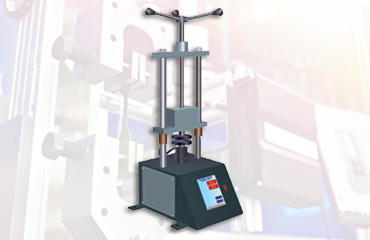

Hand Operated Tensile Testing Machine
Introduction
Main Features :
- Table Top Model.
- Digital Display of load and Elongation.
- Feather touche Key board operation.
- Tare Facility for force and displacement.
- Load display in Kg. Or Newton.
| MODEL | SET-H-1000 N | SET-H-2500 N | SET-H-5000 N |
|---|---|---|---|
| Max permissible force | 100 kg. | 250 kg. | 500 kg. |
| Resolution | 0.01 kg. | 0.03 kg. | 0.05 kg. |
| Soccernet | 250 mm | 250 mm | 250 mm |
| Resolution | 0.1 mm | 0.1 mm | 0.1 mm |
| Width Between Column | 200 mm | 200 mm | 200 mm |
| Load Cell Safety | Alarm | Alarm | Alarm |
| Size w x d x h | 300 x 430 x 1100 mm | 300 x 430 x 1100 mm | 300 x 430 x 1100 mm |
| Power Supply | 230 VAC 50 Hz Single Phase | 230 VAC 50 Hz Single Phase | 230 VAC 50 Hz Single Phase |
